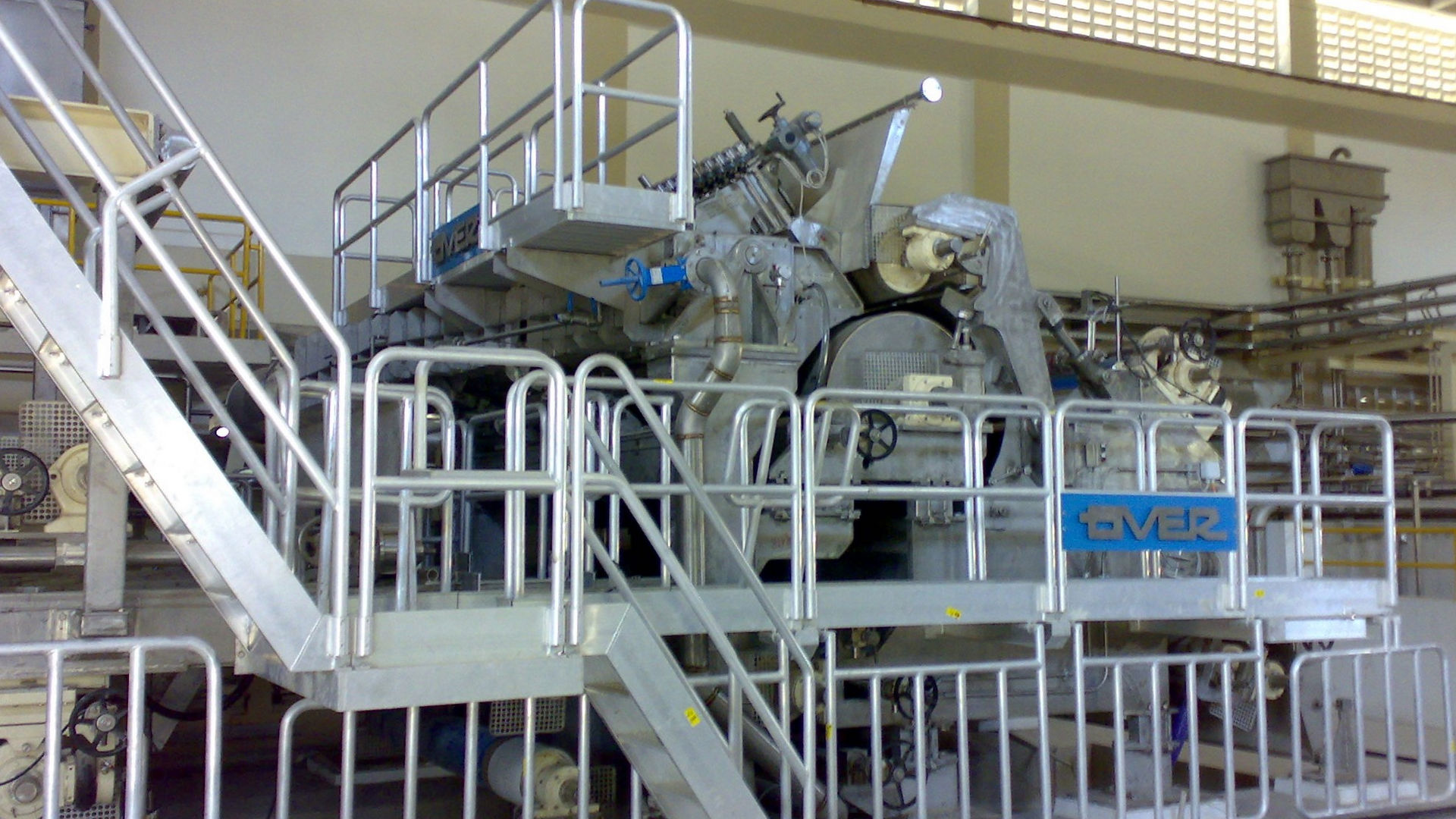

TISSUE MACHINE OVER CR B15
The OVER CR B15 line is the top in terms of production rate within the OVER CR B series.
- Production Capacity: 60 - 70 tpd
- Reel Sheet Width: 2750 - 2850 mm
- Design Speed: 1500 mpm
The OVER B15 units are designed for the first market entry and for the emerging markets; they are equipped with gas heated hood, with multiple solutions in the press section and with different Yankee sizes. In general, the OVER B lines start from 40 tpd and can produce up to 70 tpd. Our references list is full of examples of paper mills that, from 40 tpd, were able to increase the production capacity, after upgrading the machine. Our team is ready to assist you from the design phase to the complete turn-key service. Ask more information.
Machine Basic Specification
Basis weight | 12 - 40 gsm |
Design speed | 1500 mpm |
Maximum operating speed | 1400 mpm |
Trimmed width at reel | 2750 - 2850 mm |
Production capacity | 60 - 70 tpd |
Forming roll diameter | 1120 mm |
Forming section rolls number | 4 nr. |
Yankee Dryer diameter | 3600 mm |
Hood heating medium | Gas |
