TISSUE MACHINE OVER TAD 22
  • Products
  • TISSUE MACHINES

TISSUE MACHINE OVER TAD 22

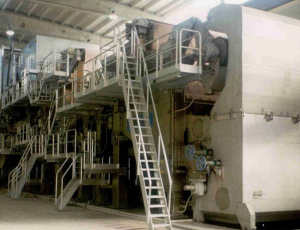

The OVER TAD22 is a tissue machine with a width up to 2.8 meters.

  • Production Capacity: 80 - 120 tpd
  • Reel Sheet Width: 2650 - 2750 mm
  • Design Speed: 1800 mpm
more information

It uses the OVER FORMER-C, which is a C-wrap twin wire tissue former, designed for the production of a wide range of tissue grades at high speeds. The twin wire C-Formers of OVER Meccanica are running in many countries worldwide and they reach a speed of 2,100 mpm. They are used in both TAD and UCTAD applications, where high dewatering performance is needed and are supplied with solid forming roll and with suction forming roll. The drying system is composed of a multi-cylinder section, “Through Air Drying” cylinders and finally a Yankee dryer.

Our team is ready to assist you from the design phase to the complete turn-key service. Ask more information.

Machine Basic Specification

Basis weight

12 - 40 gsm

Design speed

1800 mpm

Maximum operating speed

1600 mpm

Trimmed width at reel

2750 - 2850 mm

Production capacity

80 - 120 tpd

Forming roll diameter

1500 mm

Forming section rolls number

5 nr.

Yankee Dryer diameter

3600 - 4877 mm

Hood heating medium

Gas

Information requestTISSUE MACHINE OVER TAD 22

Required field

Invalid email address

Please enter a phone number

Required field

Required field

Valore non valido

Tissue Machine Components

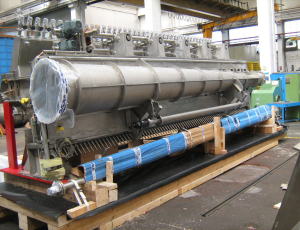

HEADBOX DYNAFLO-C

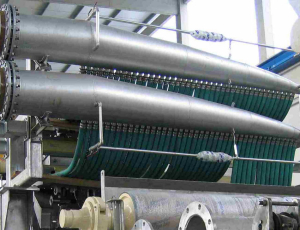

HEADBOX DYNAFLO-C2

HEADBOX DYNAFLO-TWC

OVER FORMER-C

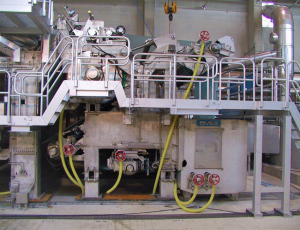

OVER FORMER-CR

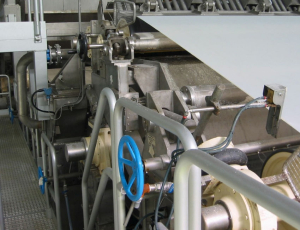

OVER FORMER-SBR

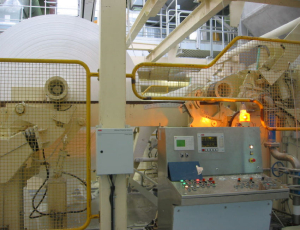

OVER REEL-TH

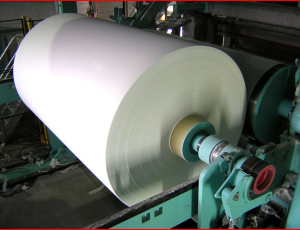

OVER REEL-TT

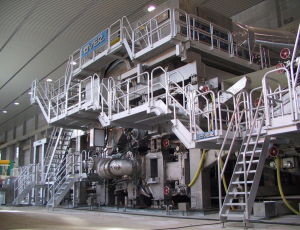

TISSUE PRESSES

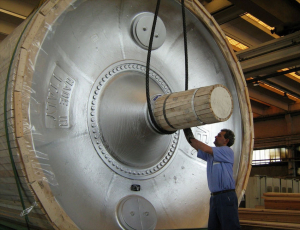

YANKEE DRYERS
